ED TPDU Header

ISO 8073 / TP

Expedited Data TPDU

Classes 1,(2),3,4

TPDU Code = 0001

TP PCI / Ü

Move the mouse pointer to any protocol field and press the left mouse button.

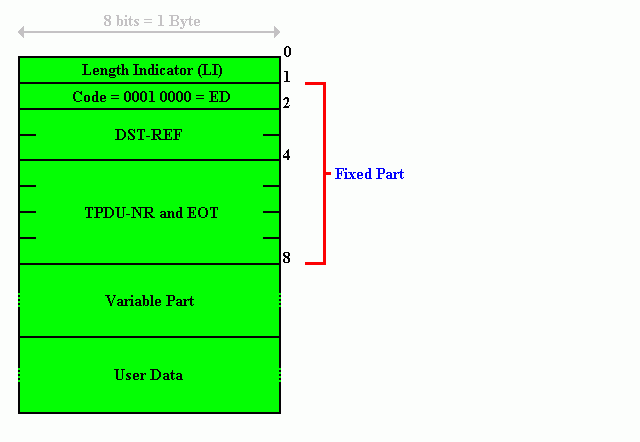

A) Normal format for classes 1, 2, 3, 4:

The variable part may contain these parameters:

> Checksum

See:

Variable Part (n bytes)

B) Normal format for classes 2, 3 and 4 when selected during connection establishment:

The variable part may contain these parameters:

> Checksum

See:

Variable Part (n bytes)
