ISO 8073 / TP
Data Acknowledgement TPDU
Classes (1),(2),3,4
TPDU Code = 0100
Move the mouse pointer to any protocol field and press the left mouse button.

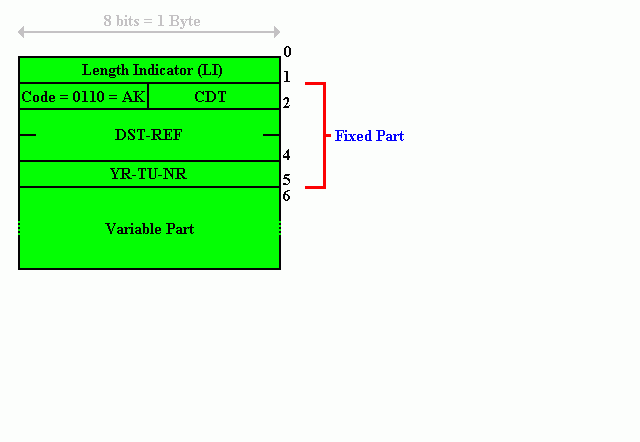

A) Normal format (classes 1,2,3,4):
The variable part may contain these parameters:
> Checksum
> Subsequence Number
> Flow control confirmation
See:

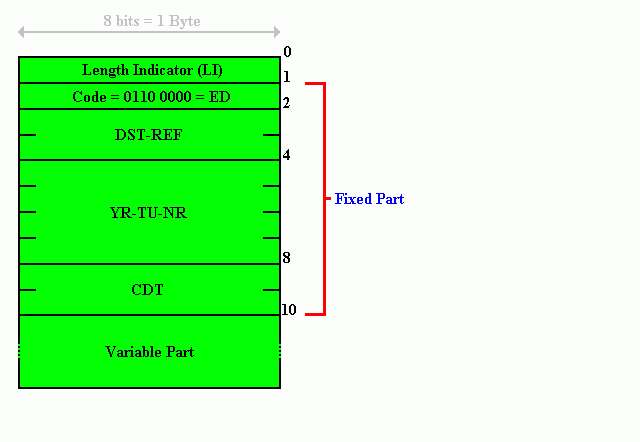

B) Extended format (classes 1,2,3,4 / when selected during connection establishment):
The variable part may contain these parameters:
> Checksum
> Subsequence Number
> Flow control confirmation
See:
