EA TPDU Header

ISO 8073 / TP

Expedited Data Acknowledgement TPDU

Classes 1,(2),3,4

TPDU Code = 0010

TP PCI / Ü

Move the mouse pointer to any protocol field and press the left mouse button.

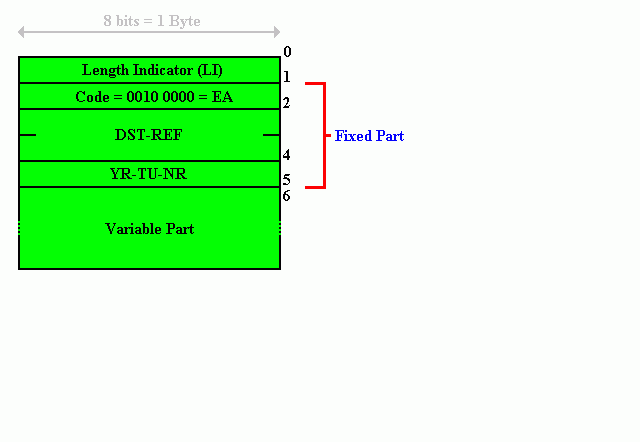

A) Normal format (classes 1,2,3,4):

The variable part may contain these parameters:

> Checksum

See:

Variable Part (n bytes)

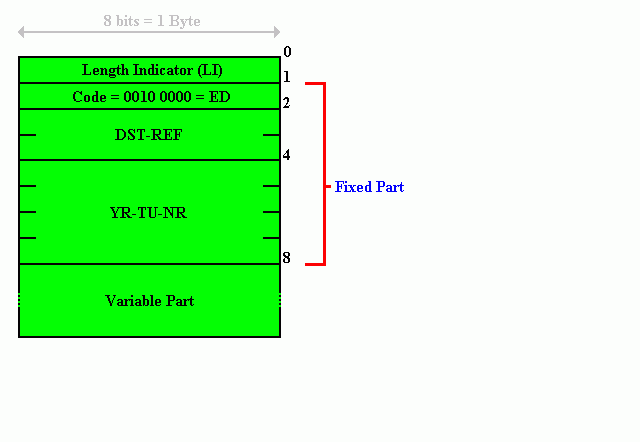

B) Extended format (classes 1,2,3,4 / when selected during connection establishment):

The variable part may contain these parameters:

> Checksum

See:

Variable Part (n bytes)
